Ibisobanuro ku bicuruzwa

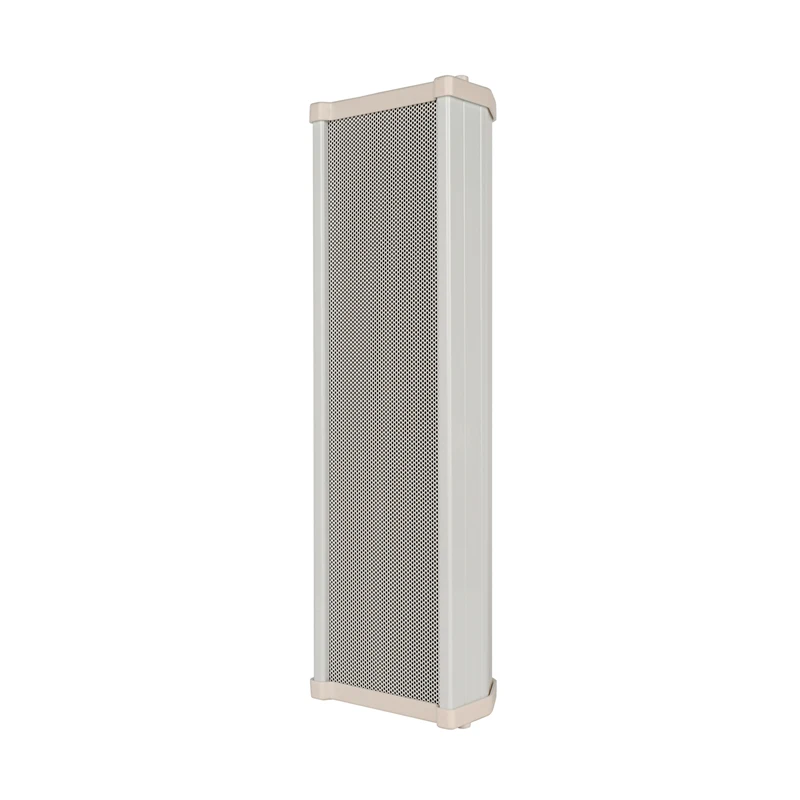

Inararibonye amajwi akomeye hamwe na NS - L030, igice cya 30W gikora inkingi ikora ihuza ibisohoka byinshi nibisobanutse bidasanzwe. Izi nkingi zikora zikora neza ahantu hanini hamwe no hanze, zitanga amajwi menshi no kugoreka - ijwi ryubusa. Bihujwe rwose na SIP protocole kandi birashobora guhuzwa na sisitemu zitandukanye za sisitemu, zitanga imikorere yizewe mubidukikije VoIP na IPPBX. Igishushanyo mbonera cyerekana igihe kirekire mubihe bigoye, bigatuma ihitamo hejuru kubisabwa rusange.
NS - L030 igaragaramo igisubizo kinini kandi gishyigikira codec nyinshi nka OPUS na G722, byemeza amajwi meza. Nkigice cya sisitemu igezweho ya ip pa, izi nkingi zikora zifasha itumanaho neza no gutangaza. Hamwe na konti ebyiri za SIP hamwe na RTP Multicast inkunga, zitanga imikorere yambere kubisubizo byamajwi.
Dushyigikiwe na CE na FCC ibyemezo, NS - L030 yujuje ubuziranenge mpuzamahanga kumutekano no gukora. Abakiriya barashobora kubona serivisi za OEM na ODM, hamwe nubufasha bwa tekiniki mugihe hamwe nicyitegererezo cyo gutumiza. Byaba bikoreshwa nka ip ya disikuru yo hanze cyangwa mumiterere yimbere, iyi moderi itanga imikorere ihamye kandi yizewe.
Ibintu by'ingenzi
- 30W amashanyarazi asohora amajwi aranguruye kandi asobanutse.
- Byuzuye - urwego Muraho - Umuvugizi wa Fi hamwe nigisubizo cyagutse.
- SIP ihuza, konti ebyiri, Ihamagarwa rya IP itaziguye, na RTP Multicast.
- Imyunyungugu ikomeye ya aluminiyumu hamwe na ABS iherezo - ingofero.
- Yemejwe na CE na FCC, ishyigikira kwihinduranya hamwe nicyitegererezo.
Ibisobanuro
|
Guhuza imiyoboro |
|
|
Imigaragarire |
10/100 Shingiro - TX, RJ45 |
|
Gushyigikirwa na Porotokole |
SIP, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP |
|
Umutekano |
Kurinda ijambo ryibanga, gushungura aderesi ya IP, Kwemeza Digest, Ifashayobora ryinjira |
|
Ijwi |
|
|
Imbaraga zagereranijwe |
30W |
| INGINGO Z'INGENZI | 103dB |
|
Igisubizo cyinshuro |
20Hz ~ 20kHz |
|
Kugoreka Byose |
Ntibiri munsi cyangwa bingana na 10% |
|
Ikimenyetso - kugeza - Igipimo cy urusaku |
Biruta cyangwa bingana na 90dB |
|
Kode |
OPUS 48KHz, MP 3 44.1 KHz, G.722 {{11} |
|
VoIP |
|
|
Porotokole |
SIP (ihuza na VoIP, ibikoresho bya SIP nka IPPBX, IP Terefone) |
|
Imikorere |
Konti ya SIP SIP Ihamagarwa rya IP itaziguye, RTP Multicast |
|
Kodegisi |
OPUS, G722, G711U, G711A |
|
Jenerali |
|
|
Ibipimo |
155 × 105 × 500mm |
|
Amashanyarazi |
PoE cyangwa DC24V |
| Imigaragarire | RJ45, DC Yinjiza Imbaraga, Iyinjiza rya GPIO, Kugarura Buto |
|
Gukoresha Ubushyuhe |
Impamyabumenyi 20 ~ +80 impamyabumenyi |
|
Ibikoresho |
Aluminium Yera Yera + ABS Plastike Impera - ingofero |
|
Kwinjiza |
Urukuta |
|
Ibiro |
4.3 kg |
Ibyiza byacu
Ikipe ikomeye ya R&D:
Kurenga 50% byabakozi bacu ni abahanga mu bya tekinike bafite uburambe, batanga igisubizo cyihuse hamwe n’umwuga mbere - kugurisha na nyuma ya - inkunga yo kugurisha.
Ubushobozi bwa OEM / ODM Ubushobozi:
Twishimiye ibisubizo byabigenewe - dusangire ibyo usabwa cyangwa ibitekerezo byawe, kandi itsinda ryacu ryinzobere rizasuzuma, rishushanye, kandi rizane icyerekezo cyawe mubikorwa hamwe nibikoresho byabugenewe hamwe no guhuza software.
Gukomeza guhanga udushya:
Twiyemeje guhora tunonosora ibicuruzwa no kuvugurura porogaramu, kwemeza ko abakiriya bacu bungukirwa nibintu bigezweho, imikorere inoze, hamwe nigihe kirekire - kwizerwa.
Umuyoboro wa serivisi ku isi:
Hamwe nabakiriya mubihugu birenga 60, dutanga serivise zumwuga ninkunga ya tekiniki kugirango dufashe abafatanyabikorwa bacu kubaka ibipimo binini, ejo hazaza - sisitemu y amajwi ya IP.
